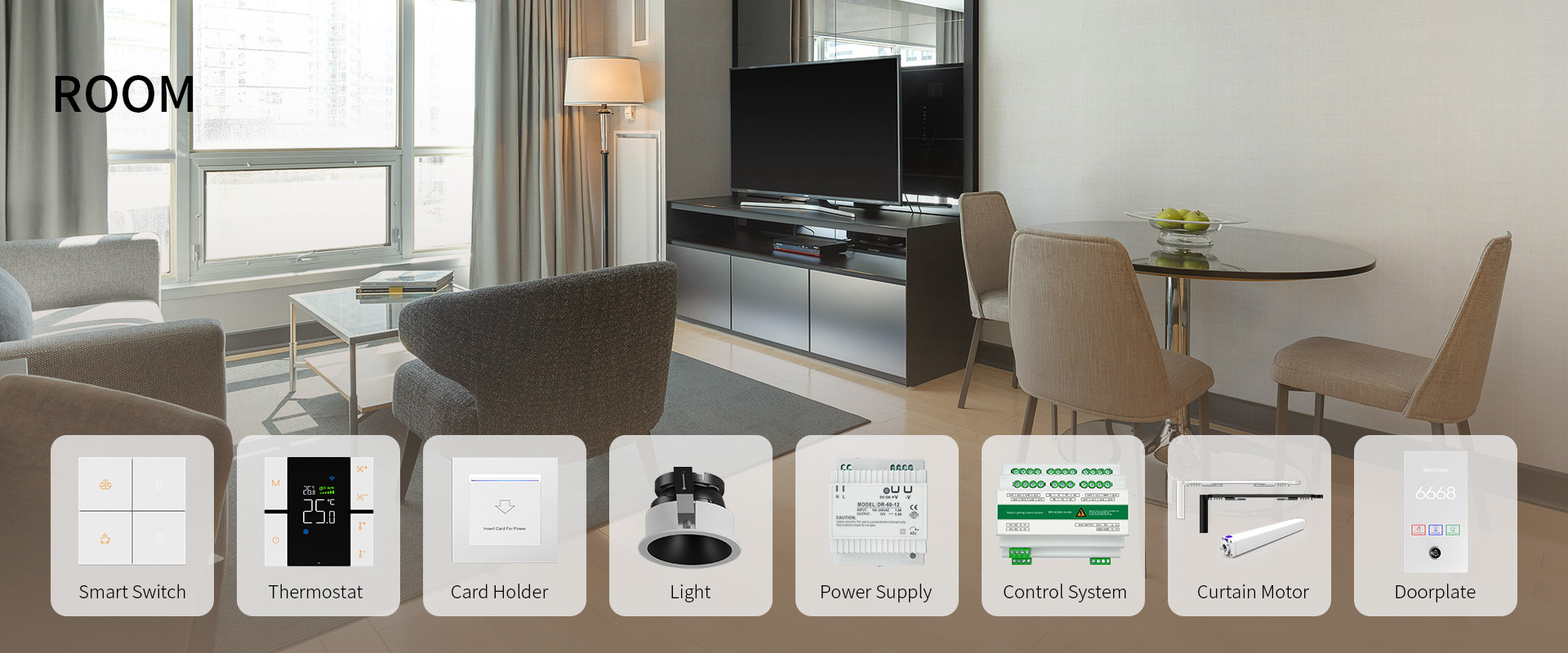

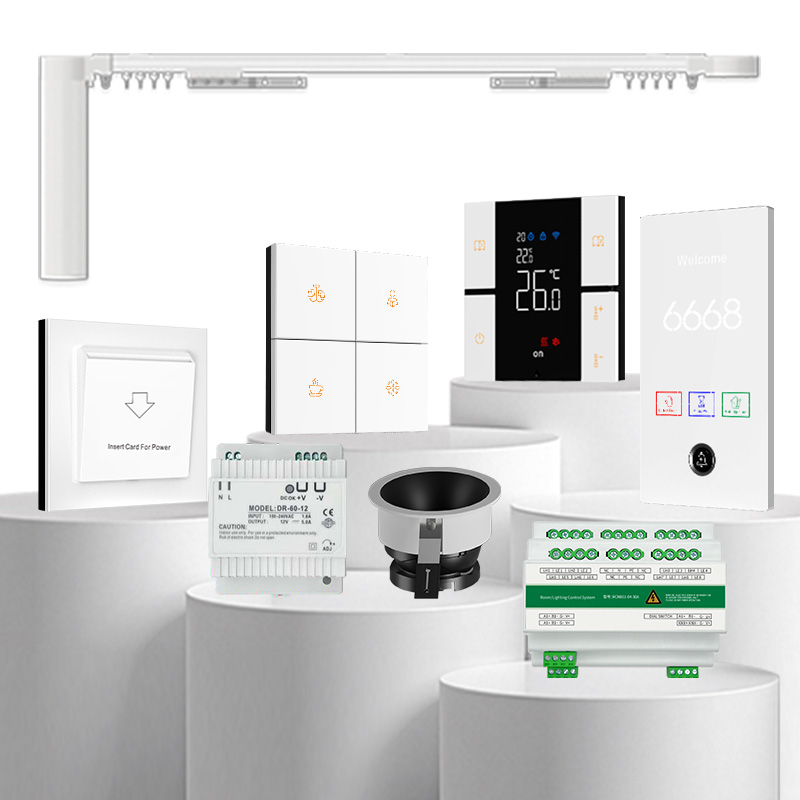

Room Configuration (Per Room)

System & Control

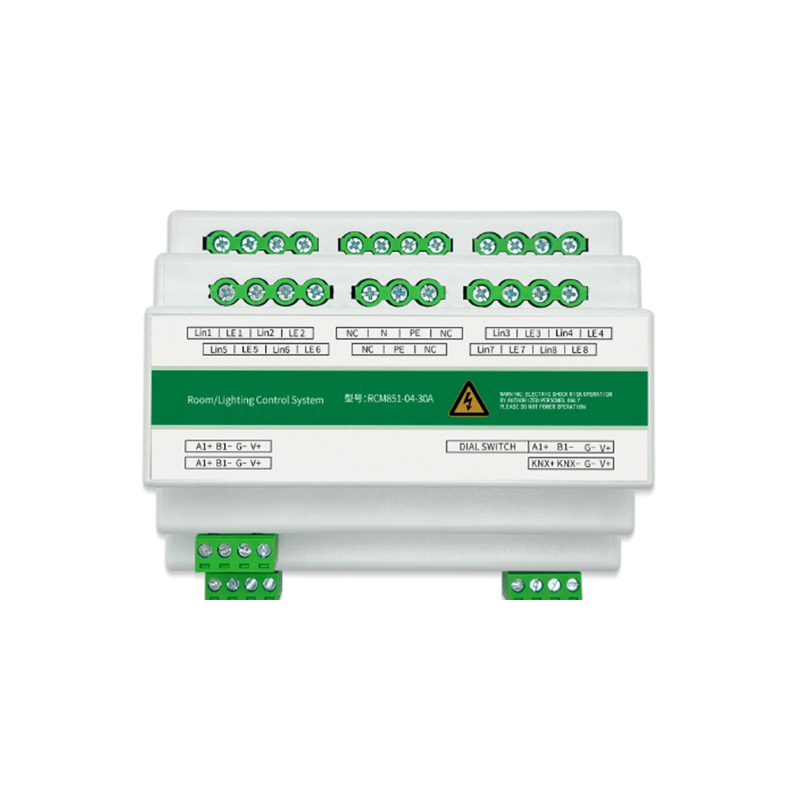

• RCU851-04 ×1 – 16 relay outputs for lights, sockets, and curtains, supporting full room control.

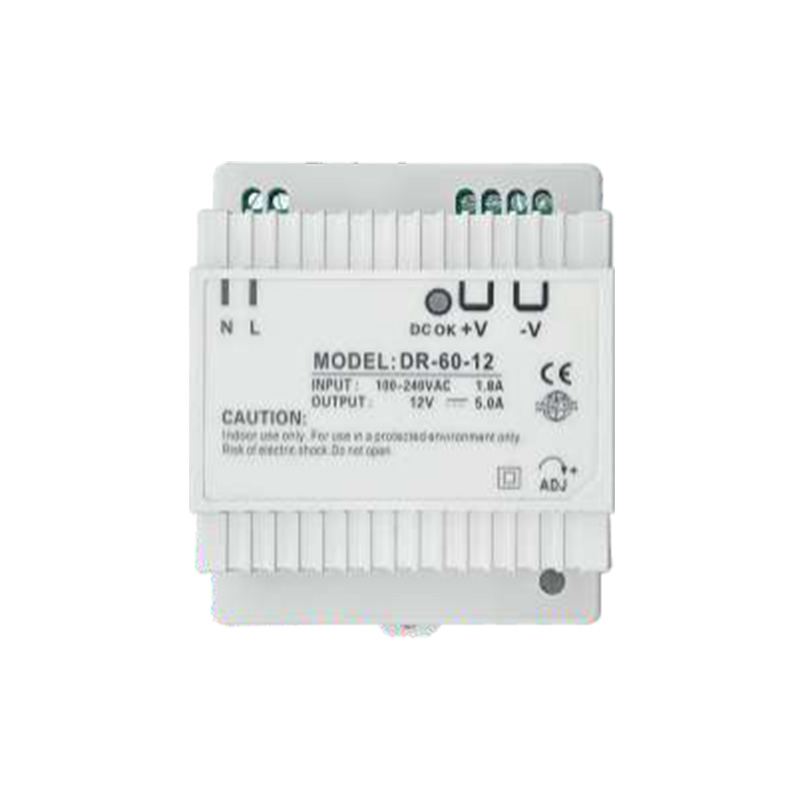

• Power Supply DR-60-12 ×1 – Ensures stable system operation.

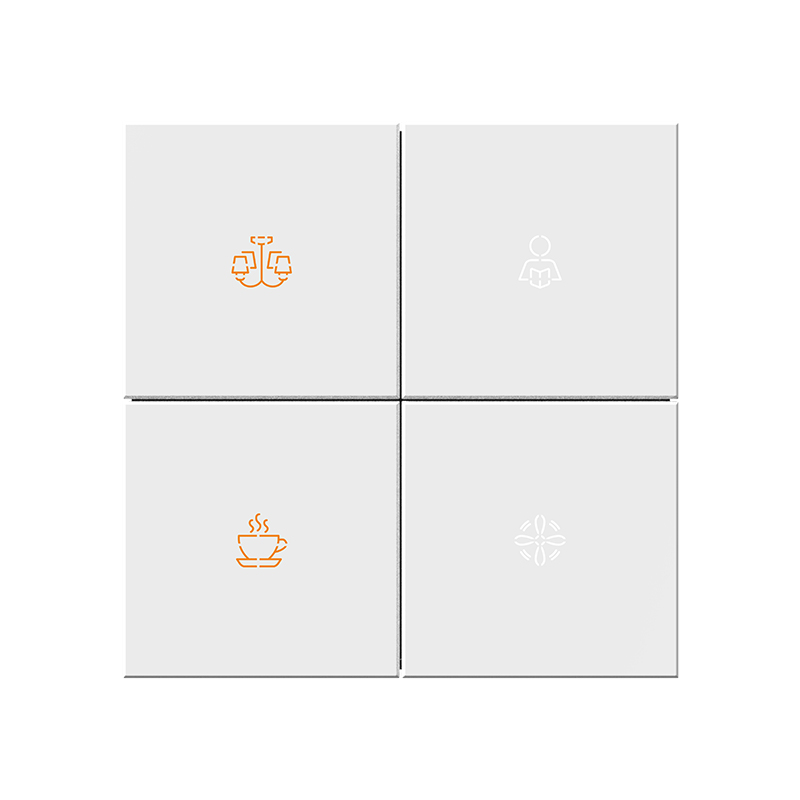

• D89 Smart Control Panels:

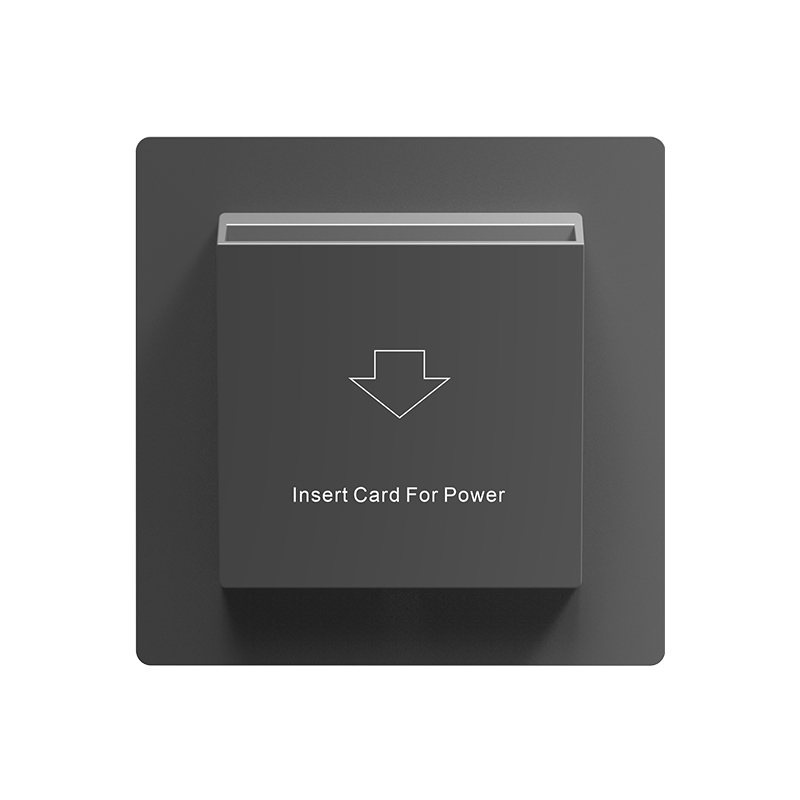

• Entrance: Key card switch ×1 + 4-gang switch ×1

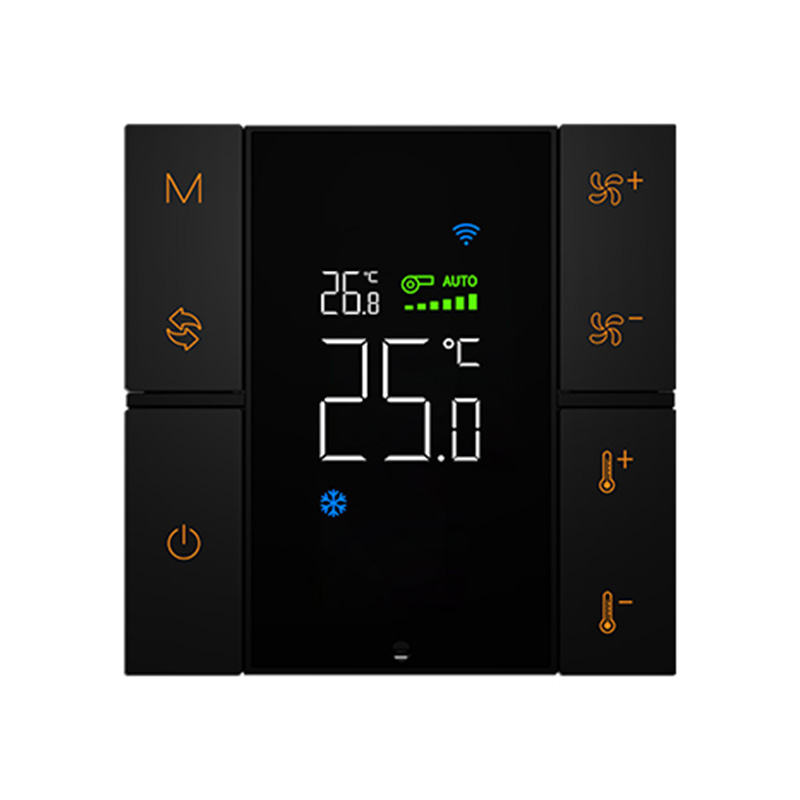

• Bedside: 4-gang switch ×1 + thermostat ×1 + socket ×1

• Bathroom: Waterproof socket ×1

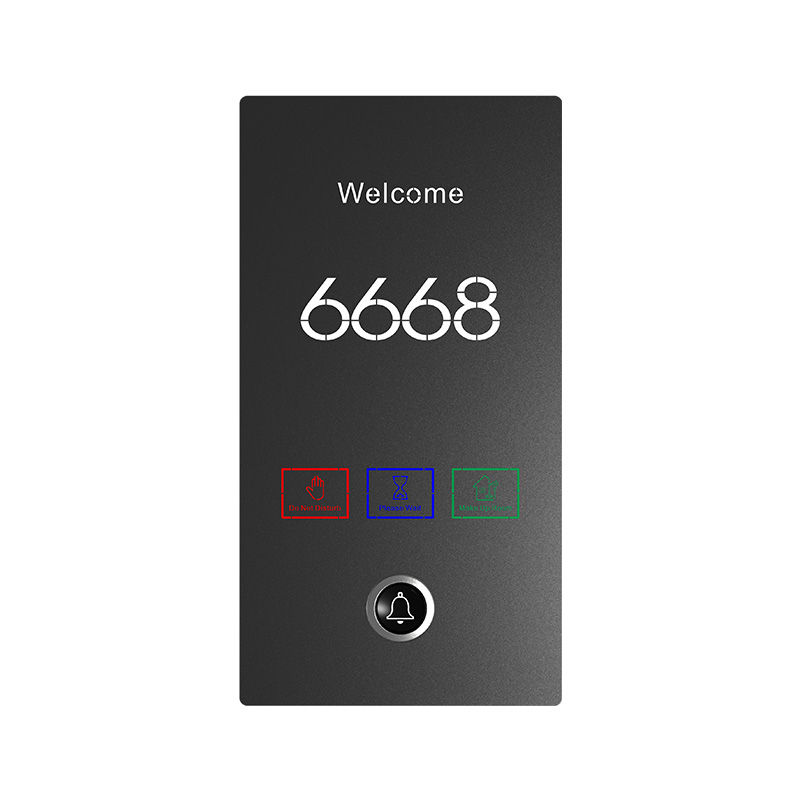

• Outside the room: Smart doorplate ×1 (with doorbell and room status display)

Curtain Control

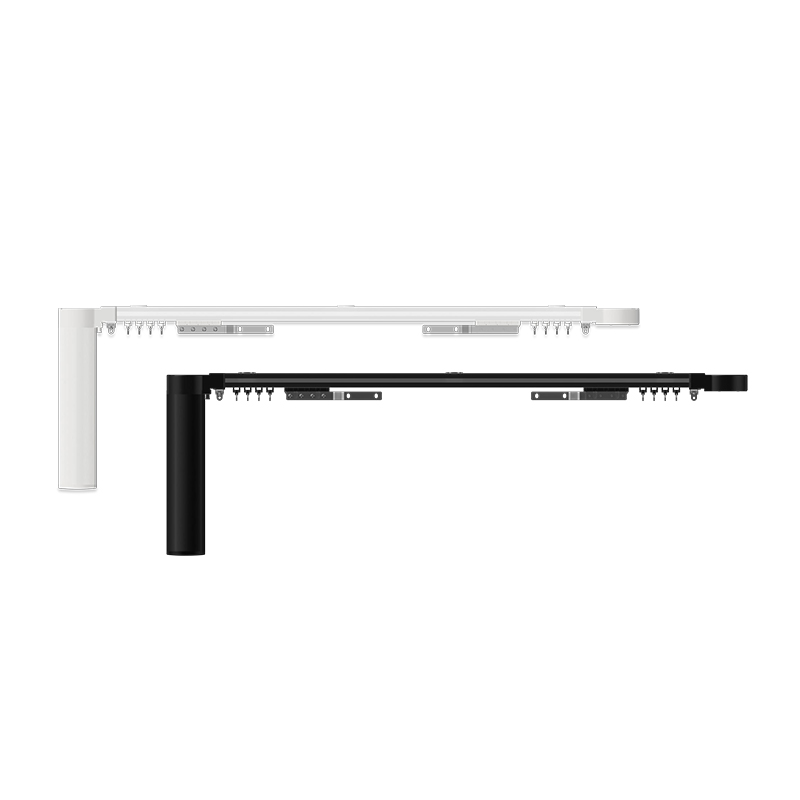

• M300 Curtain Motor ×1 – RS485-controlled, precise positioning, quiet performance.

Lighting Setup (by area)

• Entrance: Recessed downlight ×1

• Desk / TV cabinet: Recessed downlight ×1

• Window side: Recessed downlight  ×1

• Bathroom: Recessed downlight ×1 + mirror light ×1

• Bedside: Wall lamps ×2 (independent left & right control)

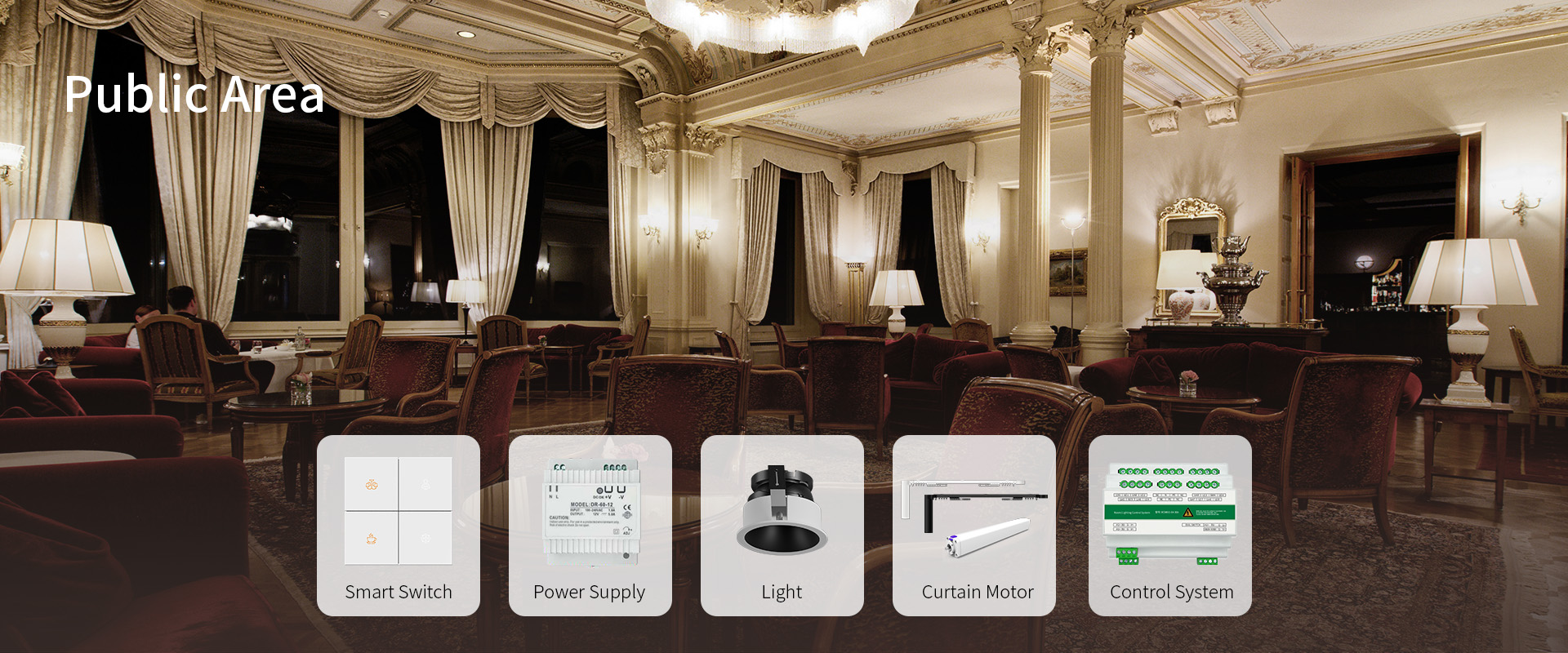

Public Area Configuration (Per Floor)

System & Control

Lobby

• RCU851-04 ×1

• Power Supply DR-60-12 ×1

• D89 Smart Control Panels ×2 (front desk zone control)




Restaurant

• RCU851-04 ×1

• Power Supply DR-60-12 ×1

• D89 Smart Control Panels ×2 (service desk / entrance)

Meeting Room

• RCU851-04 ×1

• Power Supply DR-60-12 ×1

• D89 Smart Control Panels ×2 (conference table + wall)




Corridors (per floor)

• RCU851-04 ×1 (controls lighting and power for the floor)

• Power Supply DR-60-12 ×1

• D89 Smart Control Panels ×1 (floor entrance/exit)




Curtain Control

• M300 Curtain Motors:

• Lobby: ×3 (floor-to-ceiling / panoramic windows)

• Restaurant: ×3 (near windows)

• Meeting Room: ×2 (for projection screen / blackout)

Lighting Setup (by area)

Lobby

• Chandeliers / Decorative Lights: 2

• Recessed Downlights: 12

• Wall Lights: 5

Restaurant

• Chandeliers / Decorative Lights: 15

• Recessed Downlights: 7

• Wall Lights: 5

Meeting Room

• Recessed Downlights: 7

• Wall Lights: 3

Corridors (per floor)

• Recessed Downlights: every 1.5 meters, approx. 14 per floor

• Wall Lights: 3
