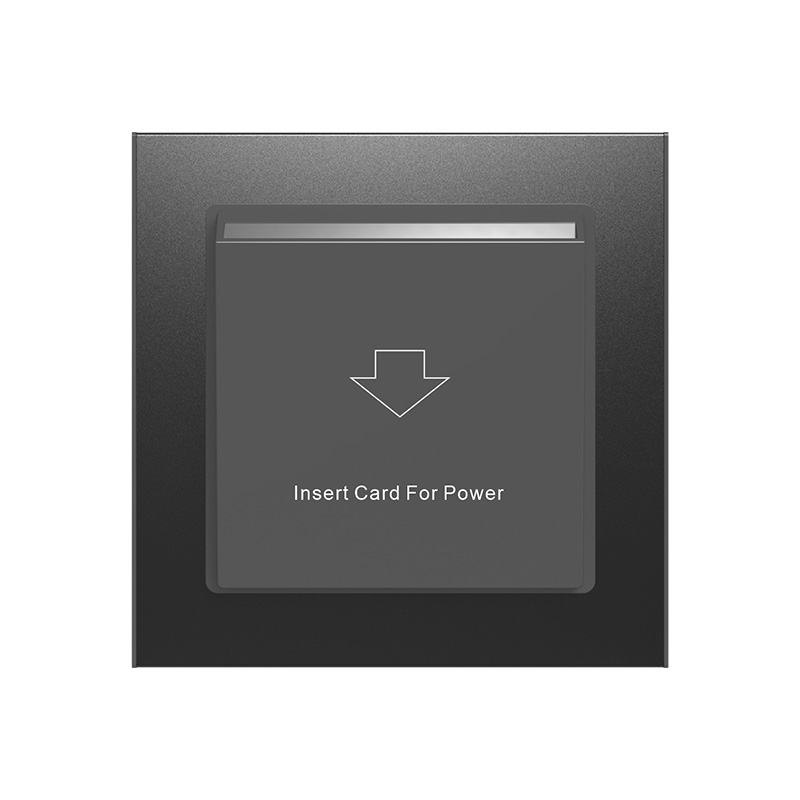

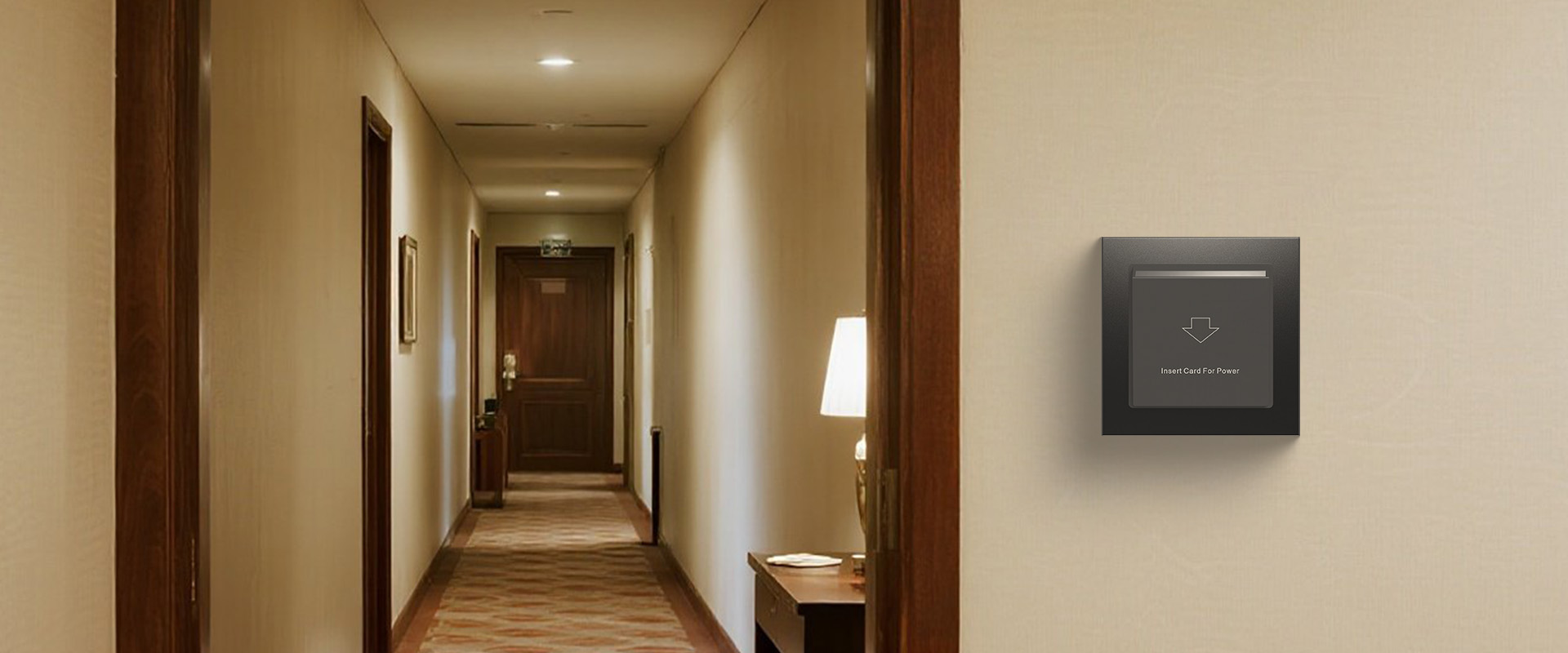

Insert the appropriate card into the card slot according to the instructions, and after the card holder recognizes the card, the card holder is closed, the power is turned on, and the indicator light goes out. After the card is pulled out, the card holder will automatically turn off after a delay of 10-20 seconds, and the power source controlled by the card holder will be cut off, and the indicator light will be on.

Functions

1. Parameter

Rated Voltage:  220VAC+-10%;

Frequency: 50/60 Hz;

Relay: 15+-5 seconds;

Maximum load current: 20A;

Self power consumption: <1.5W;

Temperature: -20C - +40C;

Humidity: =<95%;

2. Cards

3.The maximum load current (resistive) is less than 30A.

When current is higher than 20A, card holder control AC contactor, with AC contactor control load. Inductance load's start current is twice of rated current. capative load start current is twice of rated current. AC contactor's load capaticity is twice of rated current. AC contactor terminal should be connected with 474/400 capacity.

1. Data

Voltage: high voltage 220V AC ;

Self-consumption: 0.3W, less than 1.5W when pressing the bell;

Temperature: -10 - +50;

2. Instruction and note

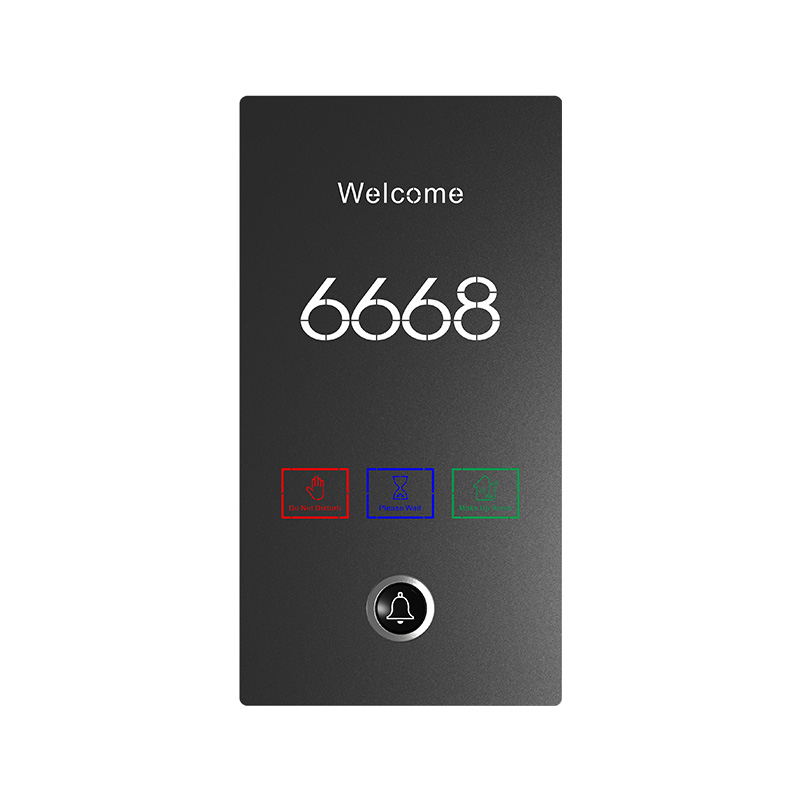

Choose the door plate according to the control way of host machine and bell contact way;

Before electrifying, ensure connection is according to the diagram;

Before installing, cut off power first;

Before installing the frame, cut off the power.

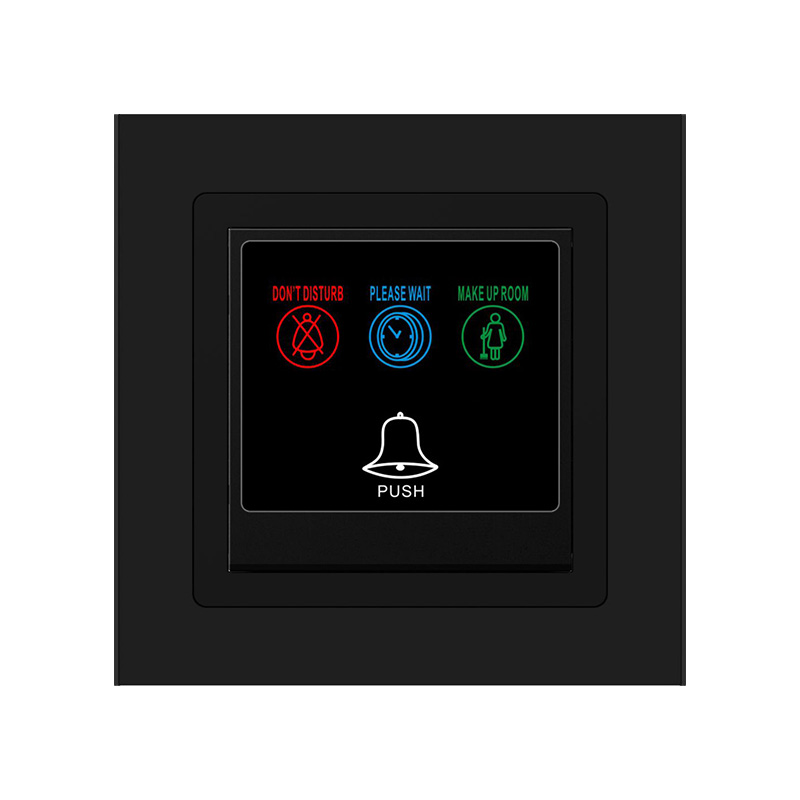

There are three types of this product that can be selected: Mechanic 2 Function (Bell + DND) / Mechanic 3 Function (Bell + DND + MUR) /

Mechanic 4 Function (Bell + DND + MUR + Pls wait).

Basic Parameters:

1. The function display of the panel is distinguished by lights of different colors: DND is red; Pls wait is blue; MUR is green.

2. Self-contained power: about 0.3W, the momentary power of pressing the doorbell is less than 1.5W.

3. Working temperature: -10℃-50℃.

Note: The "Pls Wait" function is invalid when "Do Not Disturb" is needed, just wire it like the "Make Up Room" function.
