Products Category

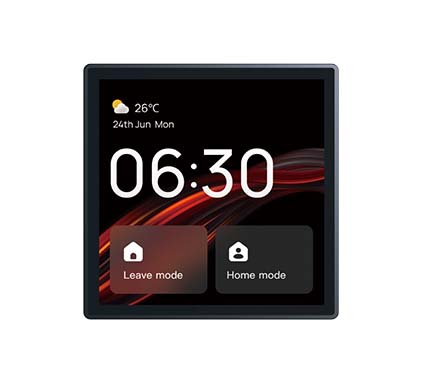

Smart Control Panel (4 inch)
Smart Control Panel (4 inch)
The Brisdom Zigbee Smart Control Panel is a compact 4-inch intelligent control screen designed for modern smart homes, apartments, and hotel projects. With a built-in Zigbee and Bluetooth Mesh gateway, it enables centralized control of connected devices through touch, voice, and mobile app interaction. Powered by a Linux-based operating system and featuring Alexa Built-in, it provides stable performance, seamless automation, and an enhanced smart living experience.

Display Size: 4-inch Touch Screen
Resolution: 480 × 480
Operating System: OS 5.0 (Linux-based)
Network: Wi-Fi 2.4GHz
Gateway Function: Zigbee Gateway + Bluetooth Mesh Gateway
Device Capacity: Up to 128 Zigbee devices and 30 Bluetooth Mesh devices
Voice Assistant: Alexa Built-in
Control Methods: Touch Screen, Voice Control, Mobile App
Power Supply: 100-240V AC (Live & Neutral Wire)
Installation: Flush-mounted (EU Standard Wall Box)

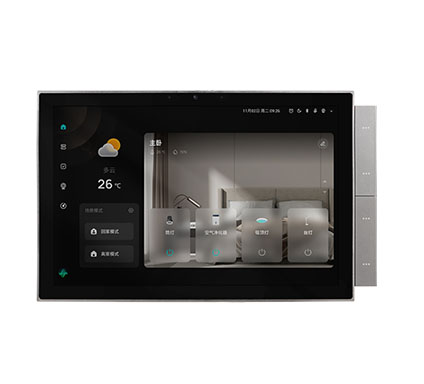

Smart Control Panel 10 Inch
Smart Control Panel 10 Inch
Zigbee Smart Control Panel Max is a 10-inch advanced smart home control hub designed for high-end residential, hotel, and apartment automation projects.
It integrates Zigbee and Bluetooth multi-protocol gateways, allowing centralized control of lighting, climate, curtains, security, and multimedia devices. With a large FHD display, built-in camera, physical control buttons, and Android system, it delivers a more interactive and powerful smart home experience.
This model is ideal for full-home visualization, video intercom systems, and multi-device smart building control.
Y8B Series Zigbee Switch
Y8B Series Zigbee Switch
Series: Y8B
Protocol: Tuya Zigbee 3.0
Power: 220V AC
Switch Material: Metal
Button Type: 1/ 2 /3 / 4 / 6 Gang Switch
Dimension: 86×86mm
Installation Method: UK Square Wall Box
Color: White / Black / Grey / Champagne

Y8B Series Zigbee 0-10V Dimmer Switch
Y8B Series Zigbee 0-10V Dimmer Switch
Series: Y8B
Protocol: Tuya Zigbee 3.0
Output: 0-10V
Power: 100V-240V AC
Switch Material: Metal
Dimension: 86×86mm
Installation Method: UK Square Wall Box
Color: White / Black / Grey / Champagne

Zigbee Full Screen Thermostat
Zigbee Full Screen Thermostat
Protocol: Tuya Zigbee 3.0
Power: 100V-240V AC
Switch Material: Acrylic
Dimension: 86×86mm
Installation Method: UK Square Wall Box
Color: Black

Zigbee Hotel Matching Devices
Zigbee Hotel Matching Devices
Series:Y8B
Protocol: Tuya Zigbee 3.0 (hotel energy saving switch)
High Voltage (Mechanic doorbell & doorplate)
Color: White; Black; Grey; Champagne;
Material: Metal
Size (mm): 86x86
Power: 220V AC
Tuya Zigbee Wired Gateway
Tuya Zigbee Wired Gateway
Product Name: ZigBee wired gateway
Product Model: DMD2CC
Power Input: DC 5V 1A
Operating Temperature: -20℃～45℃
Working Humidity: 10%-90% RH (no condensation)
Connection Method: Ethernet、ZigBee
Tuya Zigbee PIR Motion Sensor
Tuya Zigbee PIR Motion Sensor
Product Name: ZigBee PIR Motion Sensor
Working Voltage: 3V (CR123A)
Transmission Frequency: -2.4 GHz
Working Temperature: -10°C to +55°C
Undervoltage Alarm: Supported
Detection Radius: 8m
Detection Angle: 90°
Installation Height: 2.2m
Dimensions: 48.4 mm x 53.4mm
