V-Enigma is an innovative invisible lighting system designed with advanced TIR optical technology and concealed LED source structure.
The deep recessed light engine reduces glare while maintaining precise beam control, creating comfortable and high-performance lighting effects for architectural applications.
Available in recessed, track and surface mounted versions, V-Enigma provides flexible solutions for hospitality, commercial and premium residential projects.

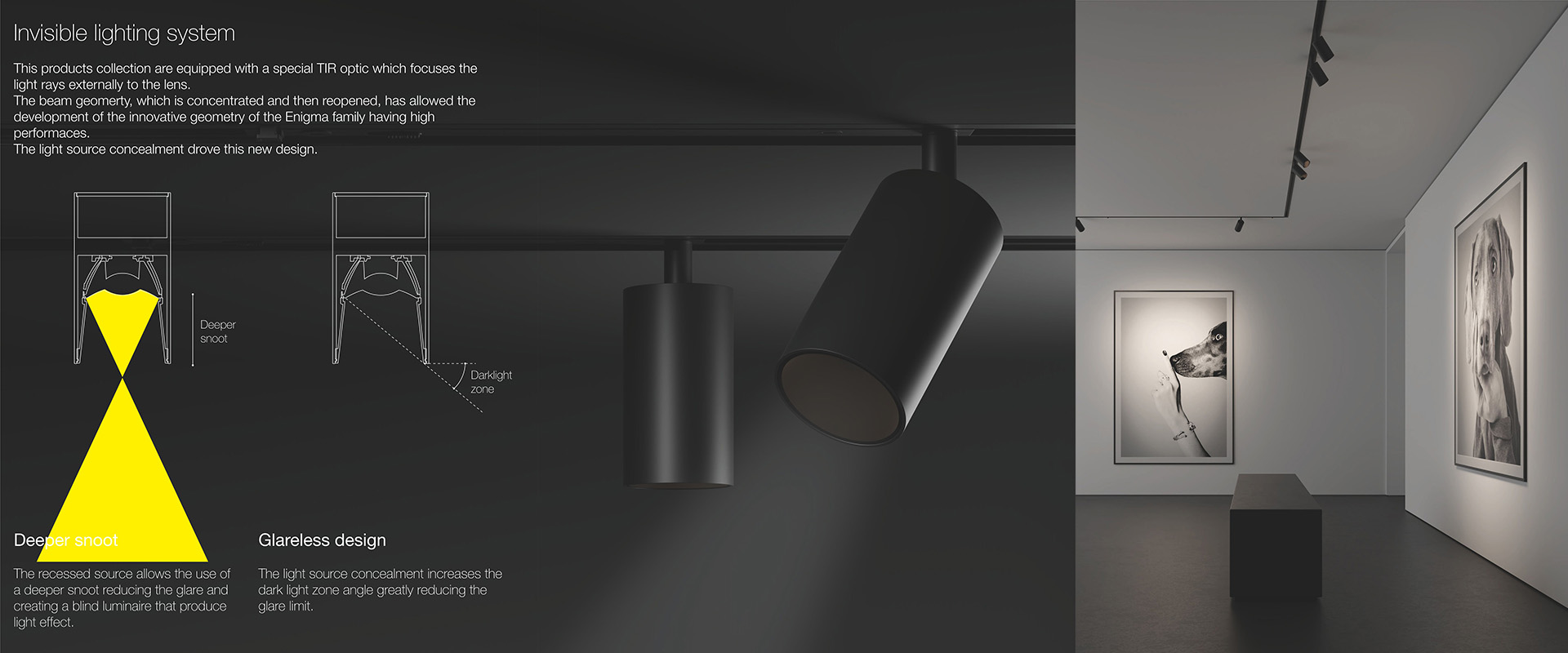

The V-Enigma series adopts a specially developed TIR optic that concentrates and redirects light rays before reaching the lens.

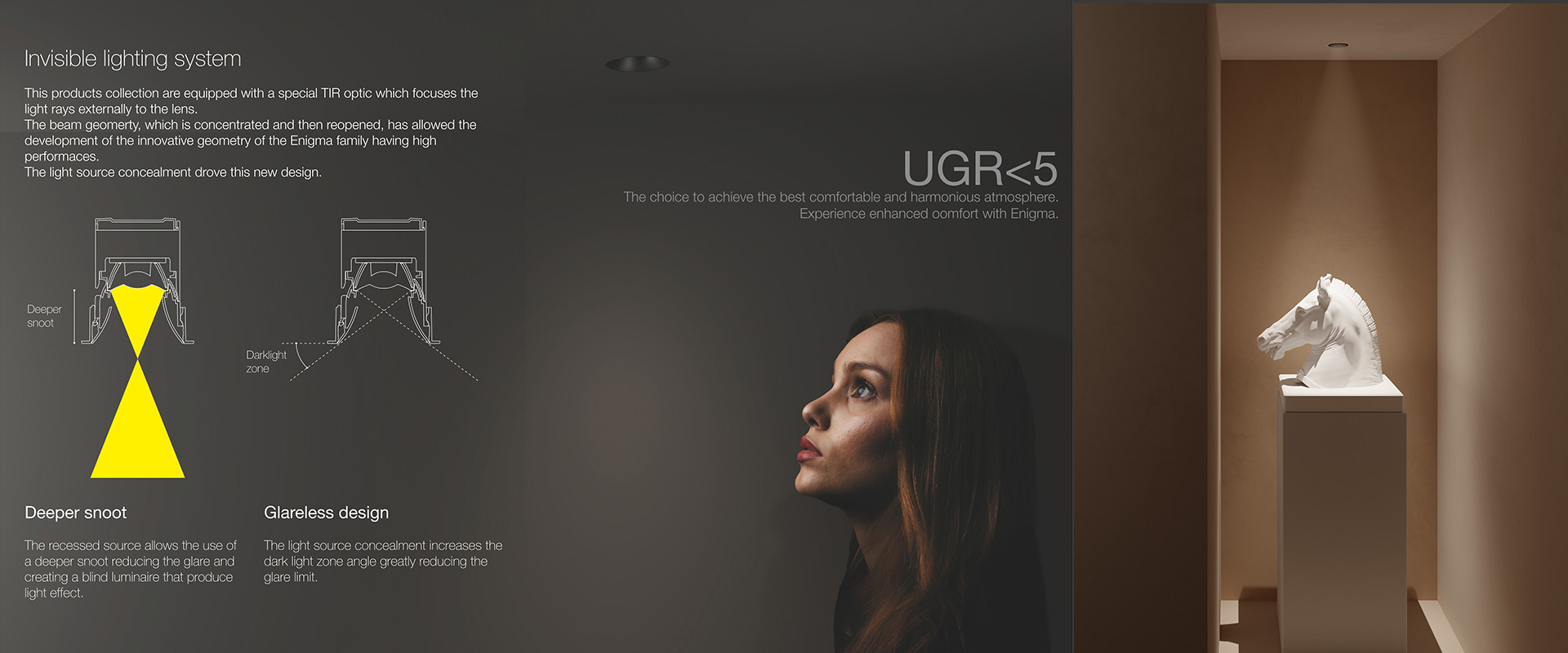

By hiding the LED source inside the luminaire body, the system achieves an ultra-low glare performance of UGR<5, delivering excellent visual comfort and clean lighting appearance.
The modular structure allows easy configuration, replacement and maintenance, improving flexibility for different project requirements.
The concealed LED design eliminates direct view of the light source and creates a comfortable visual experience.
Deep snoot structure reduces glare and improves lighting comfort for premium interior spaces.
Advanced optical control provides accurate beam distribution with options of 15°, 24°, 36° and 50°.
System efficiency up to 110lm/W with CRI>90 and SDCM 3 steps for professional lighting applications.

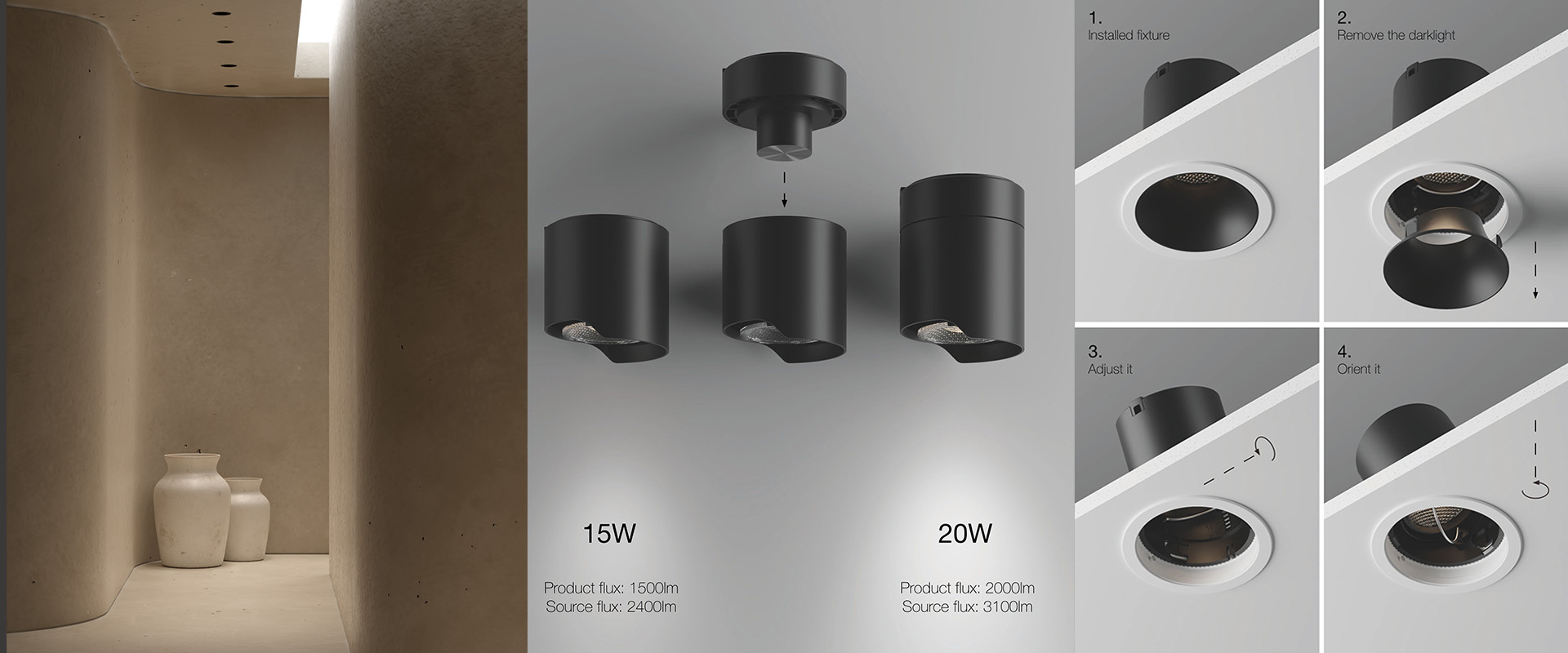

Flexible components simplify installation, replacement and project customization.

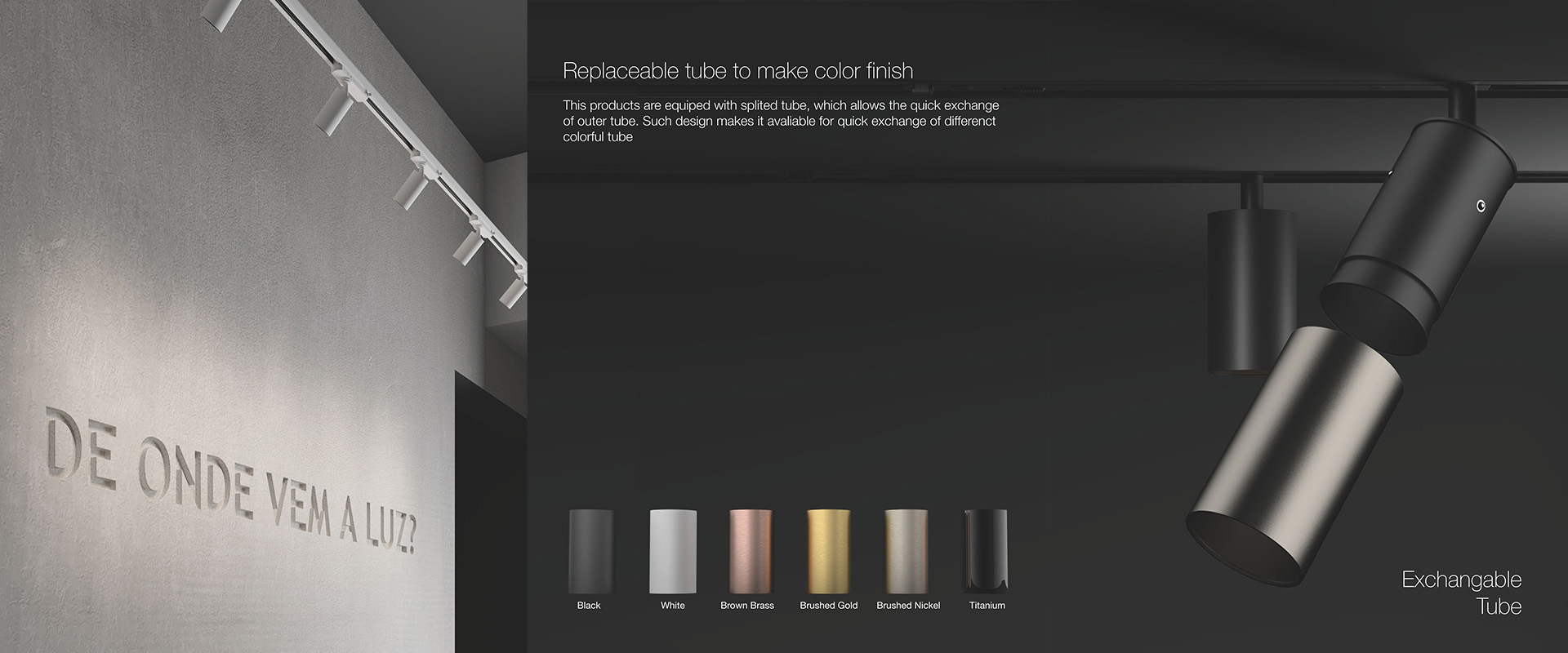

Replaceable outer tube design supports different finishes including black, white, brushed nickel, brass and rose gold.
Hotels, resorts, restaurants and luxury hospitality spaces requiring comfortable and precise lighting.
Retail stores, showrooms, galleries and offices with professional accent lighting requirements.
Luxury villas, apartments and premium residences with customized lighting design.
V-Enigma provides flexible installation solutions for different architectural lighting requirements.

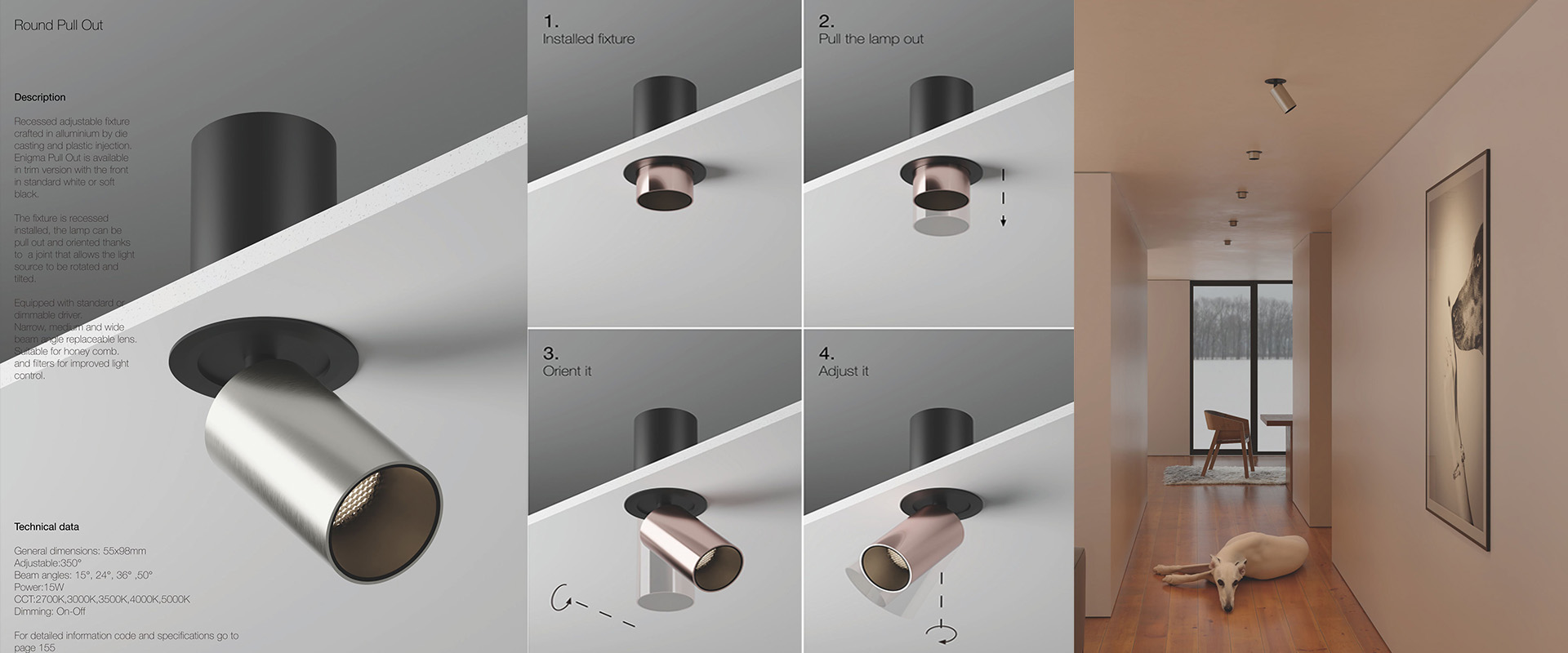

Round, square, trimless and cluster recessed versions for integrated ceiling applications.
220V AC and 48V DC track versions for retail, commercial and display lighting.
Surface mounted and pendant solutions for flexible installation environments.
| Specification | V-Enigma Series |
|---|---|
| Installation | Recessed / Track / Surface Mounted / Pendant |
| Power | 10W / 15W / 20W / 30W |
| Beam Angle | 15° / 24° / 36° / 50° |
| CCT | 3000K / 3500K / 4000K / 5000K |
| CRI | >90Ra (based on 3000K) |
| SDCM | 3 Steps |
| UGR | <5 |
| System Efficiency | Up to 110lm/W |
| Maximum Fixture Flux | Up to 3300lm |
| Driver | Included |
| IP Rating | IP20 |
| Insulation Class | Class II |
| Dimming System | ON/OFF / DALI / 0-10V / Casambi |
| Model | Type | Power | Flux |
|---|---|---|---|
| VLD169 | Recessed Round | 15W | 1650lm |
| VLD169 TRSQ | Trimless Square Recessed | 15W | 1650lm |
| VLD169 Cluster | Double Recessed | 30W | 3300lm |
| VLT169 | 220V Tracklight | 15W | 1650lm |
| VLM169 | 48V Tracklight | 15W | 1500lm |
| VLMP169 | Pendant Tracklight | 15W | 1500lm |
| VLCO169 | Surface Mounted | 15W / 30W | 1500lm / 3000lm |
V-Enigma is a professional modular LED spotlight system designed for architects, lighting designers and project contractors.
Featuring invisible light source technology, TIR optical control and UGR<5 ultra-low glare performance, V-Enigma delivers precise illumination with excellent visual comfort.
With flexible recessed, track and surface mounted options, plus compatibility with DALI, 0-10V and Casambi dimming systems, V-Enigma is suitable for hotels, retail spaces, commercial buildings and high-end residential projects.
